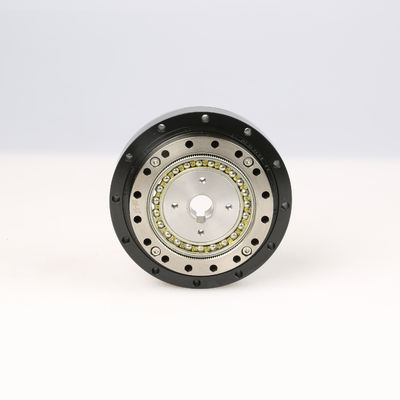

Size 25 Output Torque 10Nm Harmonic Drive Gear Reducer Good Coaxiality
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CE, CCC |
| Model Number: | WSHG-25-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 Pieces per Month |
|
Detail Information |
|||
| Output Torque: | 3.5Nm-160Nm,10Nm | Rated Input Speed: | 3000-3500rpm |
|---|---|---|---|
| Size Series: | 14/17/20/25/32 | Output Shaft: | Solid Shaft Output / Hollow Shaft Output |
| Gearing Arrangement: | 10000-15000hours | Customization: | Acceptable |
| Color: | Silver And Black | Material: | Stainless Steel |
| High Light: | Size 25 Harmonic Drive Gear Reducer,10Nm Harmonic Drive Gear Reducer,10Nm Harmonic Gear Reducer |
||
Product Description
Harmonic Driver Reducer Output Torque 3.5-160Nm Reduction Ratio 1:80 Size 25 for Waterjet Cutte
PRODUCT FEATURESS
1. Good coaxiality
2. Simple structure, small size and light weight
3.Large transmission ratio range
The transmission ratio of the single-stage harmonic reducer can reach 50-160 (if planetary wave generator is used, the transmission ratio can be expanded to 150-4000).
4. There are many pairs of teeth meshing at the same time.(The number of teeth meshed simultaneously by the dual-wave harmonic reducer can reach 30% or more. In the ordinary gear transmission, the number of teeth meshed at the same time is only 2-7%, and the number of teeth meshed at the same time for a straight cylindrical involute gear is only 1-2 pairs. It is precisely because of the unique advantage of a large number of meshing teeth at the same time that the harmonic transmission has a high precision and a large load-bearing capacity of the teeth, thereby achieving a large speed ratio and a small volume.)
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping |
Maximum Allowed Average Load Torque |
Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec |
Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
