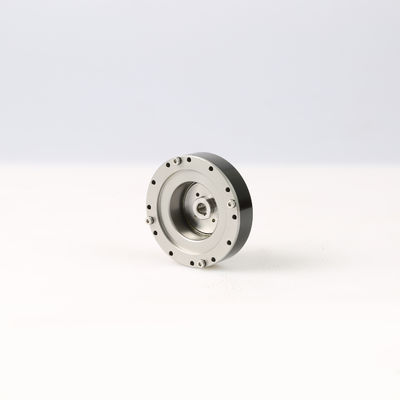

3.5Nm Harmonic Gear Strain Wave Reducer High Transmission Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CE, CCC |
| Model Number: | WSHG-25-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 Pieces per Month |
|
Detail Information |
|||
| Size Series: | 14,17,20,25,32 | Reduction Ratio: | 50,80,100,120 |
|---|---|---|---|
| Output Torque: | 3.5Nm-160Nm | Rated Input Speed: | 3000-3500rpm |
| Maximum Input Speed: | 8000rpm | Output Speed: | 30-200rpm |
| Lifespan: | 10000-15000hours | Color: | Stainless Steel |
| High Light: | Harmonic Gear Strain Wave Reducer,3.5Nm Strain Wave Reducer,3.5Nm Harmonic Gear Reducer |
||
Product Description
Harmonic Driver Reducer Reduction Ratio 1:50,80,100,120 Output Speed 30-200rpm for Waterjet Cutter
PRODUCT FEATURESS
1. High transmission accuracy.
2. Smooth movement, no impact, low noise.
3. Tooth side clearance can be adjusted.
4. Simple structure, small size and light weight.
5. Large transmission ratio range.
6. There are many pairs of teeth meshing at the same time.
7. High transmission efficiency.
8. Good coaxiality.
9. Conveniently realize differential transmission.
Principle of harmonic gear reducer
As a reducer, the harmonic gear reducer is often in a status as:the wave generator drives, the circular spline is fixed, the flexspline s output end
When the wave generator is put inside of the flexspline, the flexspline is forced into an elliptical shape causing the flexspline teeth to engage with the tooth profile of the circular spline along the major axis of the ellipse, with the teeth completely disengaged across the minor axis of the ellipse
The rotation of the wave generator makes the flexspline deform continuously, the teeth change operating state in the process of engagement and disengagement, thus the motion transmission between wave generator and flexspline is realized.
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping |
Maximum Allowed Average Load Torque |
Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec |
Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
