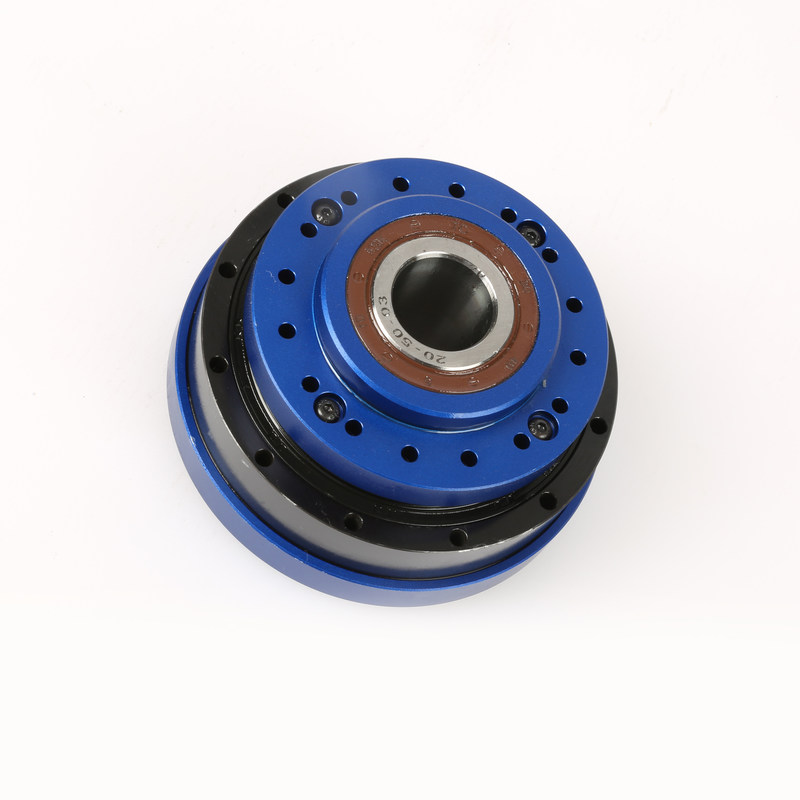

CCC Output Speed 30rpm Harmonic Drive Systems Solid Shaft Output
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CE, CCC |
| Model Number: | WSHG-25-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 Pieces per Month |
|
Detail Information |
|||
| Size Series: | 14/17/20/25/32 | Output Torque: | 3.5Nm-160Nm |
|---|---|---|---|
| Output Shaft: | Solid Shaft Output / Hollow Shaft Output | Rated Input Speed: | 3000-3500rpm |
| Gearing Arrangement: | Harmonic | Lifespan: | 10000-15000hours |
| Customization: | Acceptable | Material: | Stainless Steel |
| High Light: | 30rpm Harmonic Drive Systems,CCC Harmonic Drive Systems,CCC Harmonic Drive Reducer |
||
Product Description
Harmonic Reducer Reduction Ratio 1:80, Output Speed 30-200rpm color blue for Waterjet Cutter
PRODUCT FEATURESS
1.High transmission accuracy
2. Smooth movement, no impact, low noise
3. Tooth side clearance can be adjusted
4. High transmission efficiency
5. Good coaxiality
6. Conveniently realize differential transmission
Principle of harmonic gear reducer
As a reducer, the harmonic gear reducer is often in a status as:the wave generator drives, the circular spline is fixed, the flexspline s output end
When the wave generator is put inside of the flexspline, the flexspline is forced into an elliptical shape causing the flexspline teeth to engage with the tooth profile of the circular spline along the major axis of the ellipse, with the teeth completely disengaged across the minor axis of the ellipse
The rotation of the wave generator makes the flexspline deform continuously, the teeth change operating state in the process of engagement and disengagement, thus the motion transmission between wave generator and flexspline is realized.
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping |
Maximum Allowed Average Load Torque |
Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec |
Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
