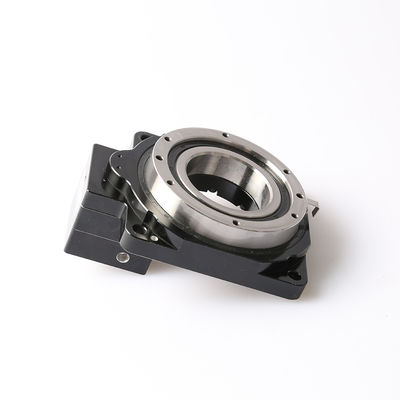

Hollow Shaft Servo Rotary Actuator Hollow Rotary Platform Planetary Gear Speed Reducer
|Place of Origin:||China|
|Certification:||ISO9001, CCC, CE|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||Carton Package|
|Delivery Time:||4-8 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10,000 Pieces per Month|
|Output Torque:||5.2~400Nm||Maximum Input Speed:||10000rpm|
|Output Speed:||150~200rpm||Gearing Arrangement:||Helical|
|Size:||060, 085, 130, 200,280,350,450||Allowed Axial Load:||250~11000N|
|Backlash:||No Backlash, Adjustable||Surface Runout:||Less Than 0.015mm|
Rotary Platform Planetary Gear Reducer,
Platform Planetary Gear Speed Reducer,
Hollow Shaft Servo Rotary Actuator
High Torque Hollow Shaft Servo Rotary Actuator Hollow Rotary Platform Planetary Gear Speed Reducer
Wanshsin Hollow rotary actuators is the planetary gearbox with flange output, which allows for direct mounting of work piece for added convenience in work piece loading. The hollow structure design makes Wanshsin hollow rotating table convenient for electric wiring or piping work.
The mechanical connection of this flange gearbox to your machine is executed quickly and simply, and is additionally secured by a dowel hole in the output flange. The gear part of the reduction mechanism adopts the ultra-precision processing gears, which eliminates the tooth gap through its own adjustment mechanism, that’s why Wanshsin hollow rotary actuators is with high positioning accuracy up to be 15sec in a very short time. Such high precision gearbox is usually the ideal option of cell phone factories,camera producing,mulch applicator fields,etc.
Washsin hollow rotary gearbox itself has a fixed ratio 1:5 , 1:10, 1:18. It can be matched with single stage planetary gearbox to get more different ratio like 1:15, 1:16, 1:20, 1:24, 1:30, 1:32, 1:40, 1:50. Wanshsin series normally match with servo motors and stepper motors, below for your reference to choose a correct model:
WTN-060 series-- 50~100W AC servo motor, model 42 stepper motor ;
WTN-085 series-- 50~100W AC servo motor, model 42 stepper motor ;
WTN-130 series-- 200-400W AC servo motor, model 57 stepper motor ;
WTN-200 series-- 750W AC servo motor, model 86 stepper motor ;
WTN-280 series-- 1500W AC servo motor, model 110/130 stepper motor;
WTN-350 series-- 1000~4400W AC servo motor, model 130 stepper motor;
WTN-450 series-- 1000~5500W AC servo motor, model 130 stepper motor;
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
