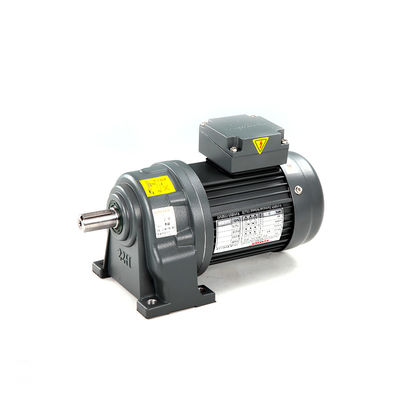

High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v

High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v

Product Details:

Place of Origin: China
Brand Name: Wanshsin
Certification: ISO9001, CCC, CE
Model Number: GV22400W10SBG1LDH0

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Package
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 Pieces per Month
Get Best Price Contact Now

Detail Information

Output Shaft: Special Designed Shaft For Poultry Usage Output Torque: 6-3226Nm
Installion: Vertical/Horizontal Installed Power: 0.1kW-7.5kW
Reduction Ratio: 1:3-1800 Output Speed: 7-570rpm
Protection Range: IP44 IP54 IP55 Frequency: 50Hz, 60Hz
Motor: Singe Phase/Three Phase Material: Aluminium Alloy/Cast Iron
High Light:

Shaft AC Medium Gear Motor

,

High Torque Medium Gear Motor

,

IP44 Horizontal Speed Reducer Motor

Product Description

High torque durable cost economic 1/3 phase 220v 380v horizontal vertical costomized shaft AC medium gear motor

PRODUCT FEATURESS

1 Compact structure, small size, easy to install.
2 High reliability, high load capacity, long life time.
3 High efficiency and save power.
4 Save cost and low maintenance.
5 High wear resistance, low temperature.
6 Special designed output shaft for poultry usage.



Output Shaft 18 22 28 32 40 50 60
RATIO 3~50 3~90 3~200 3~200 3~200 3~200 3~100
Power 100W/200W 100w.200w.400w 1/4HP.1/2HP,1HP 1/2HP,1HP,2HP 1HP,2HP,3HP 2.3.5.7.5.10(HP) 7.5HP.10HP
Output torque 0.19~19.3kg-m 0.19~36kg-m 0.37~69kg-m 1.3~123kg-m 1.3~145kg-m 2.6~267kg-m 9.8~267kg-m
Output speed (RPM) 0.1~1800RPM 0.1~1800RPM 0.1~1800RPM 0.1~1800RPM 0.1~1800RPM 0.1~1800RPM 0.1~1800RPM




High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 0High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 1High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 2High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 3High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 4High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 5High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 6High Torque Shaft AC Medium Gear Motor Horizontal Vertical 1/3 Phase 220v 380v 7

FAQ


Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size



Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.



Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.



Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
