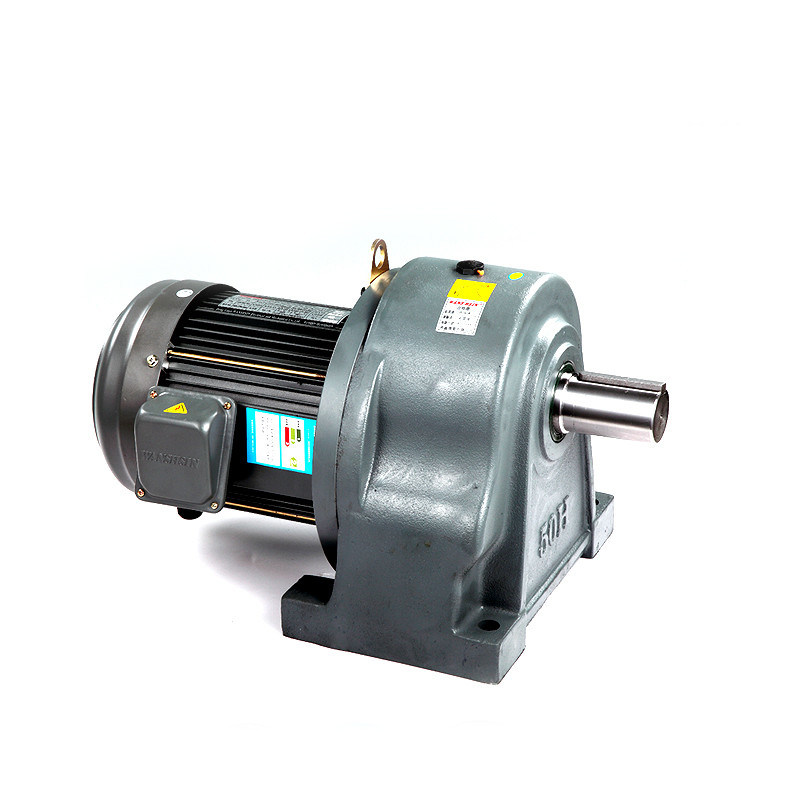

Helical Motors Medium Reduction Gear Motor Variable Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CCC, CE |
| Model Number: | GV22400W10SBG1LDH0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 Pieces per Month |
|
Detail Information |
|||
| Output Shaft: | Special Designed Shaft For Poultry Usage | Output Torque: | 6-3226Nm |
|---|---|---|---|
| Installion: | Vertical/Horizontal Installed | Power: | 0.1kW-7.5kW |
| Reduction Ratio: | 1:3-1800 | Output Speed: | 7-570rpm |
| Protection Range: | IP44 IP54 IP55 | Frequency: | 50Hz, 60Hz |
| Motor: | Singe Phase/Three Phase | Material: | Aluminium Alloy/Cast Iron |
| High Light: | Medium Reduction Gear Motor 570rpm,Helical Medium Reduction Gear Motor,Aluminium Alloy Speed Reducer Motor |
||
Product Description
Wholesale High Quality Helical Motors Medium Variable Speed Medium Reduction Gear Motor Product Description
PRODUCT FEATURESS
1 Compact structure, small size, easy to install.
2 High reliability, high load capacity, long life time.
3 High efficiency and save power.
4 Save cost and low maintenance.
5 High wear resistance, low temperature.
6 Special designed output shaft for poultry usage.
| Output Shaft | 18 | 22 | 28 | 32 | 40 | 50 | 60 |
| RATIO | 3~50 | 3~90 | 3~200 | 3~200 | 3~200 | 3~200 | 3~100 |
| Power | 100W/200W | 100w.200w.400w | 1/4HP.1/2HP,1HP | 1/2HP,1HP,2HP | 1HP,2HP,3HP | 2.3.5.7.5.10(HP) | 7.5HP.10HP |
| Output torque | 0.19~19.3kg-m | 0.19~36kg-m | 0.37~69kg-m | 1.3~123kg-m | 1.3~145kg-m | 2.6~267kg-m | 9.8~267kg-m |
| Output speed (RPM) | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
