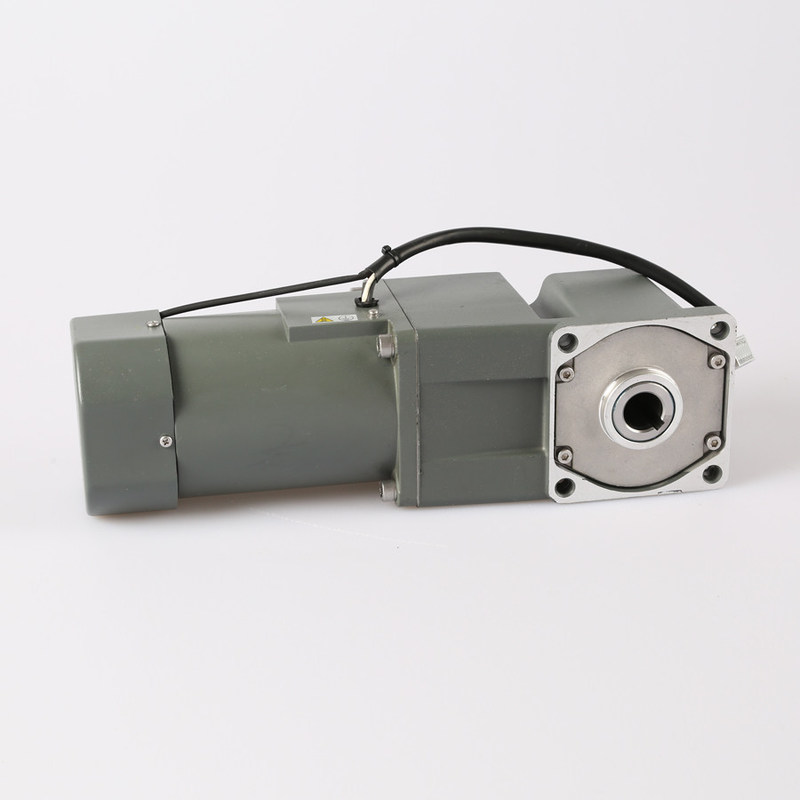

Right Angle Hollow Shaft Micro Gear Motor Input Speed 1300 - 1600rpm

Right Angle Hollow Shaft Micro Gear Motor Input Speed 1300 - 1600rpm

Product Details:

Place of Origin: China
Brand Name: Wanshsin
Certification: ISO9001, CCC, CE
Model Number: RC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Package
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20,000 Pieces per Month
Get Best Price Contact Now

Detail Information

Reduction Ratio: 1:3-2000 Output Speed: 7-533rpm
Output Torque: 0.11-44Nm Input Speed: 1300-1600rpm
Voltage: 110V/220V/380V Frequency: 50Hz, 60Hz
Gear Size: 60/70/80/90/100 Shaft Shape: Hollow Shaft
Gearbox Type: Right Angle
High Light:

1300rpm Micro Gear Motor

,

1600rpm Micro Gear Motor

,

1600rpm Hollow Shaft Gear Motor

Product Description

Input Speed 1300-1600rpm Right Angle Hollow Shaft Output Micro Gear Motor



Product Features

1. High stability:Load power is sufficient, stable operation, and low fatigue after long term use.

2. Various function to motor.
3. Multiple voltage.
4. Wide power range.

5. Variable speed gear motor, compatible with speed controller



MICRO AC MOTOR 6W 15W 25W 40W/60W 90W/120W 140W/160W 180W/200W 250W
Reduction Ratio 3~200 3~200 3~200 3~200 3~200 3~200 3~200 3~200
50HZ Rated torque 0.13~3N.M 0.30~5N.M 0.50~8N.M 0.77~10N.M(40W) 1.19~20N.M(60W) 1.79~20N.M(90W) 2.25~20N.M(120W) 2.62~44N.M(140W) 2.76~44N.M(160W)

3.1~44N.M(180W)

3.44~44N.M(200W)

4.26~44N.M
60HZ Rated Torque 0.11~3N.M 0.25~5N.M 0.41~8N.M 0.64~10N.M(40W) 0.99~20N.M(60W) 1.49~20N.M(90W) 1.87~20N.M(120W) 2.19~44n.m(140W) 2.48~44N.M(160W)

2.76~44N.M(180W)

2.87~44N.M(200W)

3.83~44N.M

MICRO DC MOTOR 60DC 70DC 80DC 90DC 100DC
Reduction Ratio 3~200 3~200 3~200 3~200 3~200
Output Bearing speed 533~8 533~8 533~8 533~8 600~9
Rated torque 0.129~3n.m 0.26~5n.m 0.386~8n.m 0.52~20n.m

2.578~44n.m



Right Angle Hollow Shaft Micro Gear Motor Input Speed 1300 - 1600rpm 0Right Angle Hollow Shaft Micro Gear Motor Input Speed 1300 - 1600rpm 1Right Angle Hollow Shaft Micro Gear Motor Input Speed 1300 - 1600rpm 2



FAQ


Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size



Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.



Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.



Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
