Compact Structure Wanshsin Gear Motor Speed Controller

Compact Structure Wanshsin Gear Motor Speed Controller

Product Details:

Place of Origin: China
Brand Name: WANSHSIN
Certification: ISO9001, CCC, CE
Model Number: GH22-750W-5SB

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: 399
Packaging Details: wooden box / tray
Delivery Time: 5~8 working day
Payment Terms: T/T
Supply Ability: 5000
Get Best Price Contact Now

Detail Information

Power: 750W Ratio: 5
Brake: Yes Torque: 22Nm
IP Grade: IP44
High Light:

Wanshsin Gear Motor Speed Controller

,

Compact Gear Motor Speed Controller

,

Wanshsin Motor Speed Controller

Product Description

WS-L 120W Wanshsin Gear Motor Speed Controller Capacitor Built In Compact Structure



Product Features

1 Achieve continuously variable transmission in a wide range, when combined with variable speed motor.
2 Feature-rich, enabling slow acceleration, slow deceleration and motor stall protection.
3 The capacitor for speed governor running is mounted directly inside the speed controller, featuring neat and convenient wiring.



Type parameter table



Type WS-P WS-L WX-K
Installation method Panel type Digital display panel type Multi-Function digital panel type
Speed control method Panel Potentiometer Panel Key/Panel Potentiometer Panel Key/Panel Potentiometer
Power voltage Single-phase 220V AC Single-phase 220V AC Single-phase 220V AC
Functions

Speed control,

slow deceleration,

slow acceleration,

locked rotor protection

Speed control, slow deceleration, slow acceleration, electromagnetic brake, locked rotor protection, panel control forward and reverse, speed display, panel buttons, control with memory, magnification setting and external switches K1 and K2 can be directly connected to PLC control. Speed control, slow acceleration, slow deceleration, locked-rotor protection, control forward and reverse rotation, speed display, panel button control with memory, magnification setting, 4 speeds, power failure electromagnetic brake stop, RST reset function, 0~10V simulation quantity control and external switches K1 and K2 can be directly connected to PLC control.
Applicable motor power range 6W~200W
Running capacitor Built-in
Power frequency 50/60Hz
Speed range 50Hz:90~1300r/min 60Hz:90~1600r/min
Speed variation rate 5%
Electromagnetic brake time 0.4 seconds
Applicableenvironment -10℃~+40℃ non-freeze;<85% non-condensation

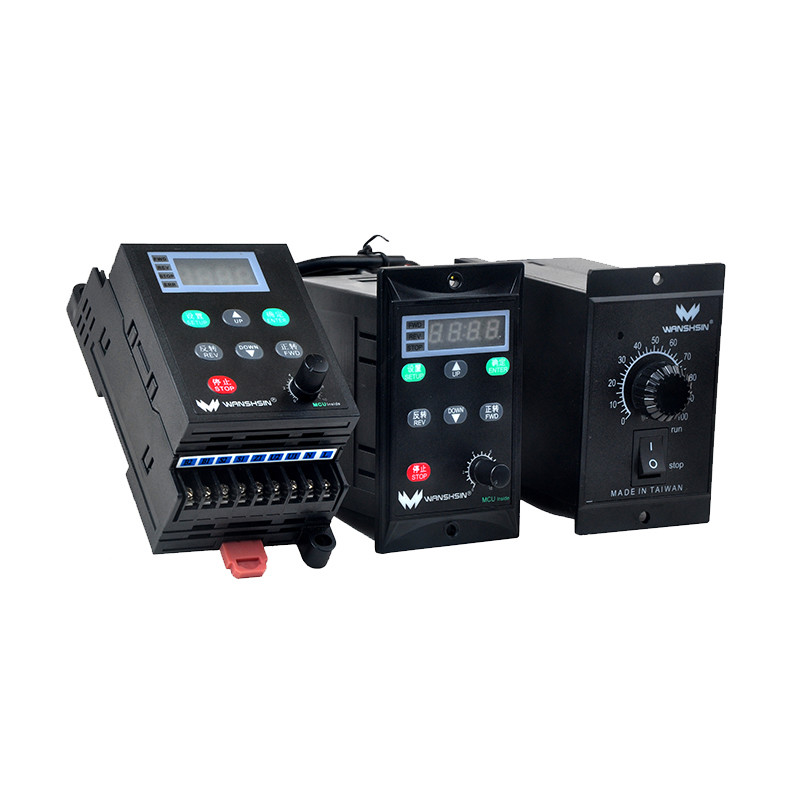

Compact Structure Wanshsin Gear Motor Speed Controller 0

FAQ


Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size



Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.



Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.



Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
