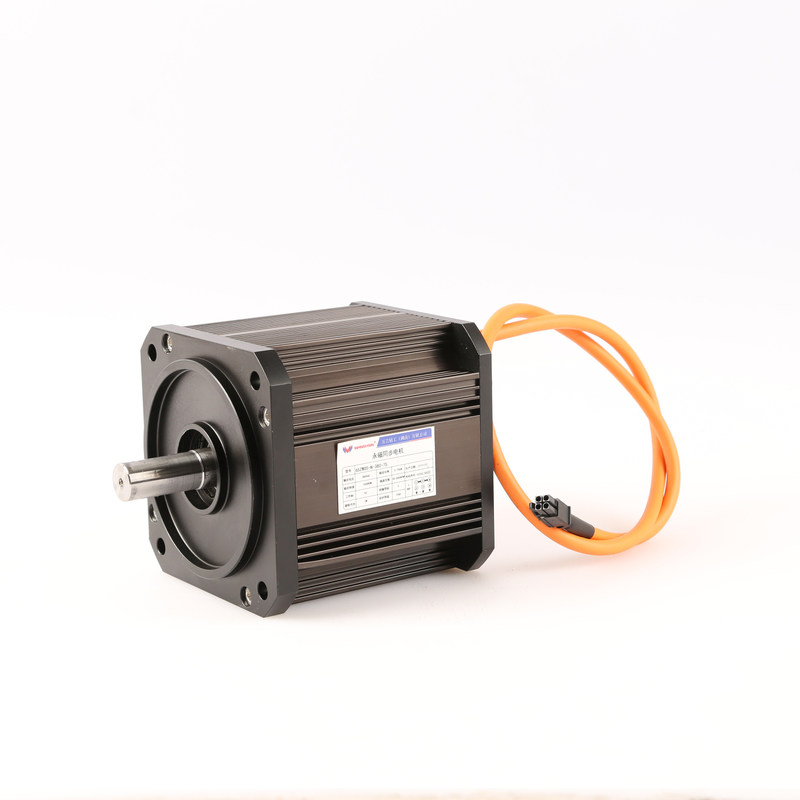

Compact Structure Permanent Magnet Synchronous Motors IP65 600rpm
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CCC, CE |
| Model Number: | Wanshsin |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 4-10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 Pieces per Month |
|
Detail Information |
|||
| Output Torque: | 12Nm | Rated Speed: | 600rpm |
|---|---|---|---|
| Max Speed: | 700rpm | Insulation Grade: | F |
| Gearing Arrangement: | Permanent Magnet Motor | Protection Grade: | IP65 |
| Rated Voltage: | Single-Phase 220V AC | Rated Power: | 0.5kW 0.75kW 0.86kW 1.1kW |
| High Light: | 600rpm Permanent Magnet Synchronous Motors,IP65 Permanent Magnet Synchronous Motors,IP65 PM Synchronous Motor |
||
Product Description
Permanent Magnet Synchronous Motors PMSM Compact Structure 0.75kW 600rpm
Product Features:
● Integrated Electric Drive With Control
● Low Speed & Large Torque
● Long Service Life
● High Reliability
● Maintenance-Free
● High Efficiency and Energy Saving
● Multi-protection
● Rich peripherals
|
Rated Power
|
0.75kW
|
|
Rated Voltage
|
Single Phase 220VAC
|
|
Rated Torque
|
12Nm
|
|
Max. Speed
|
700rpm
|
|
Insulation Grade
|
F
|
|
IP Grade
|
IP65
|
|
Rated Speed
|
600rpm
|
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
