Hot sale Micro Motor AC 25W single Phase reduction Motors speed controller
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CCC, CE |
| Model Number: | 80YT25WGV22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 7-14 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Pieces per Month |
|
Detail Information |
|||
| Gearing Arrangement: | Helical | Output Speed Range: | 7-433rpm |
|---|---|---|---|
| Weight (KG): | 4.2 KG | Customized Support: | OEM,ODM |
| Output Torque: | 0.13-44N.M | Input Speed: | 90-1600RPM |
| Warranty: | 2 Years | Supply Ability: | 20000 Piece/Pieces Per Month |
| High Light: | 380V HVLS Ceiling Fan,0.55kW HVLS Ceiling Fan,0.55kW High Volume Low Speed Ceiling Fan |
||
Product Description

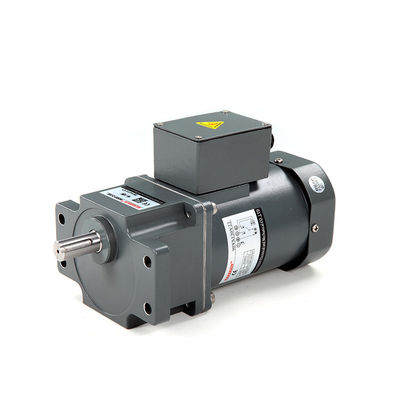

Micro Motor AC 25W - 80YT25WGV22/ 80GK right angle motor with speed controler
Features
Spiral tooth design, the base material has both rigidity and toughness, and the parts mesh well; the gear is made of low-carbon alloy steel, and the surface hardness of the gear is carburized and quenched to HRC62 to obtain the best wear resistance and impact resistance toughness. The reduction mechanism adopts helical gear design, and its tooth profile meshing ratio is more than twice that of ordinary spur gears. The bevel gear of the reducer adopts a hypoid spiral bevel gear, and the tooth surface is grinded, which has the characteristics of low noise, high efficiency and compact structure. The motor adopts high temperature resistant F grade copper wire and wired by high accurate mechanical system, and at the same time uses professional motor testing equipment for testing.
Product Features
| Gearbox Model | |
| Stand code | 60,70,80,90,100 |
| Model code | GK,GF,GM |
| Ratio | 3-200 |
| Structure Code | H/ HE/ RT/RC |
| Derived Code | K |
| Micro AC MOTOR | |
| Stand Code | 60,70.80,90,100 |
| Power Code | 6-200W |
| Name Code | YS,YT,YB,YF,YR |
| Rotor Shaft Form Code | G/D |
| Voltage Code | V11,V22,Y22,Y38 |
| Derived Code |
X/T/H/FF
|
Advantages
High durability: The gear is made of high-strength alloy steel, and the shell is made of high-strength die-cast aluminum alloy, which is lightweight and durable; high efficiency: higher transmission efficiency than traditional bevel gears and worm gear reducers at the same speed ratio; High Input speed: the maximum input speed can reach 10000 rpm; low noise: exquisite design, precision manufacturing, noise is less than 65dB(A); maintenance-free: the whole machine is compact, the reducer is lubricated with grease, and it is maintenance-free for life; Insulation grade: F grade, temperature resistance 155 ℃.
Application
Micro Gear Motor are mainly used in conveying machinery, packaging machinery, food machinery, textile machinery, office machinery, printing machinery, electronic equipment, medical equipment, chemical equipment, pollution prevention machinery, sports machinery , Special professional machinery, wire and cable, financial professional and other fields, are the most ideal supporting products for automation equipment in various industries.
