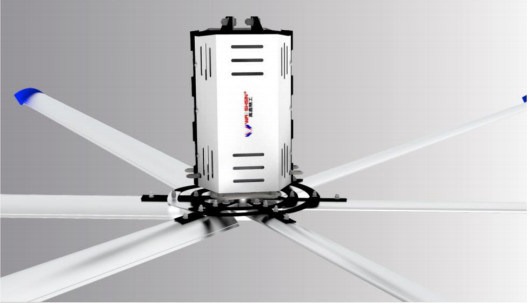

50Hz HVLS Ceiling Fan High Volume Low Speed Fan For Logistical Warehouses
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CCC, CE |
| Model Number: | DIFPM-3-110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 7-14 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Pieces per Month |
|
Detail Information |
|||
| Blade Diameter: | 3.6m, 7.3m | Output Speed Range: | 5-90rpm |
|---|---|---|---|
| Full Load Air Volume: | 9000-14500 M3/min | Input Power: | 0.55kW,1.5kW |
| Voltage: | 380V/220V | Type: | Permanent Magnet Gearbox Type |
| Protection Grade: | IP56 | Color: | White/Yellow/Customized |
| High Light: | 50Hz HVLS Ceiling Fan,Logistical Warehouses HVLS Ceiling Fan,50Hz High Volume Low Speed Fan |
||
Product Description
HVLS Ceiling Fan High Volume Low Speed 50Hz 60Hz for Logistical Warehouses
Industrial HVLS energy saving fan is becoming a standard configuration of modern warehouses.
The product quality not only depends on the finished products, but also lies in the logistics and warehousing. Such as food, tobacco, textile, medicinal materials, chemical products, hardware and so on, they all need certain storage condition. It may cause the product quality lower and reduce the quality guarantee period or even may cause a great loss and waste if the warehouse condition is poor. So warehouse should maintain proper air flow and maintain good ventilation condition and completes the moisture-proof, anti-corrosion, mould-proof, prevent metamorphism and so on according to the different object storage requirements. in addition, logistics warehousing will also become the first complaint object it product packaging once damp and deformation, so, people pay more and more attention to ventilation cooling equipment in the modern warehousing logistics industries. Now, you need the more efficient and energy saving storage ventilation equipment-Large energy saving fan from Wanshsin Seikou (Hunan) Co.,Ltd.
Modern warehouse mostly use roof axial flow fan for air circulation, but a single use effect is no good and can only form a short air channel within a certain space, it cannot completely eliminate the moisture and bad air around the corner effectively especially in high roof warehouses.
Product Features
| Blade Diameter | 3.6 m | 7.3 m |
| Input Power | 0.55 kW | 1.5 kW |
| Full Load Air Volume | 9000 m3/min | 14500 m3/min |
| Speed Range | 10-90 rpm | 5-55 rpm |
| Weight | 48.8 Kg | 130 Kg |
| Noise | ≤39 dB | ≤39 dB |
| Isolating Grade | F | F |
| Protection Level | IP56 | IP56 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
